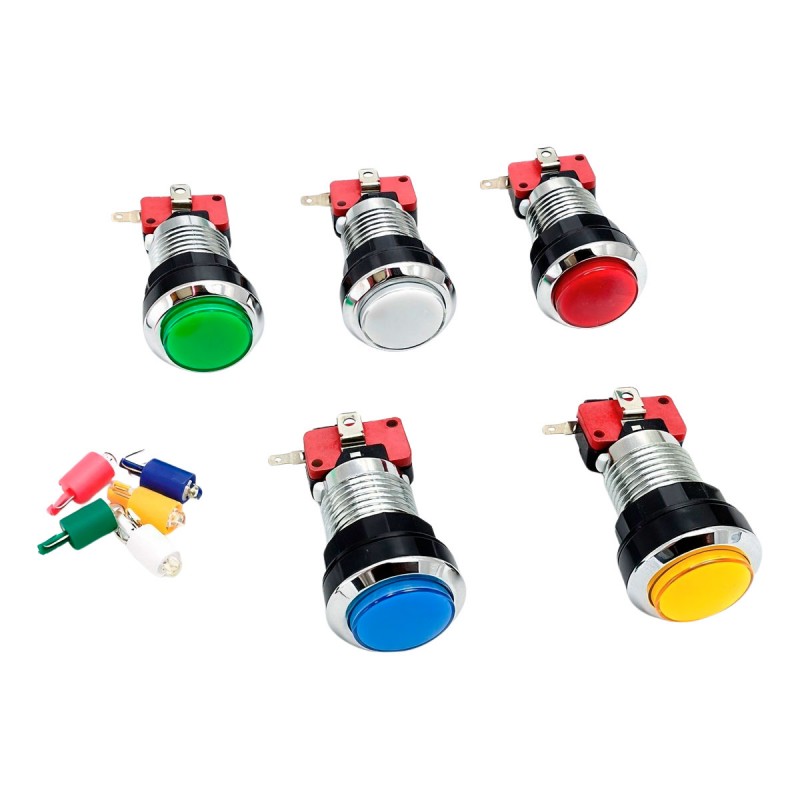

illuminated LED Chrome Arcade Button

A beautiful and practical Chromed Arcade Button illuminated by LEDs so that you can give your Arcade Machine a colourful and different touch. You can also complement these buttons with the illuminated 1 and 2 player buttons which you can also find on our website.

These great Chromed LED buttons make the push button light up in the very center of it giving it a magical and different touch to your Arcade machine.

Depending on the theme you have chosen for your Arcade project, you can choose between buttons of the same colour. For example, if you are building an Arcade cabinet based on the Tron arcade game, you could buy all the buttons in blue or mix different colours by giving each colour a function: red to exit or turn off the machine, yellow in case you want to put buttons on the sides in case you put a pinball emulator on it, white to enter the menu and so on with many possible creative combinations. You could also combine these pushbuttons and put an illuminated credit push button like the ones we sell at Arcade Express.

With a 28mm diameter and an approximate length of 35mm, the pushbutton can be installed on both metal and wooden panels quickly and easily thanks to the Nut Thread Washer system. This push button can be installed in holes ranging from 28mm to 30mm in diameter.

The LED is compatible with both 5V and 12V. In case the LED stops working, you can easily replace it. At our store you can find loose LED lamps that will serve as replacements.

In order to light up the pushbutton, you will need a 5V or 12V power source. We recommend that you either directly get it from the Arcade Machine power supply or from one of the 5V pins on the Xin Mo encoder, or the specific Zero Delay LED encoders to light up the LEDs. These Zero Delays are available for 1 or 2 players which are also available at our store.

Mounting Information

To install the Chromed LED Arcade push button, you'll need 4.8mm wiring as that is the width of the button action terminals and 6.3mm LED wiring as that is the width of the LED fastons. If you purchase one our interfaces, be sure to select the option with 6.8mm wide terminals wire. You can also purchase extra 6.3mm cables for the Zero Delay LED or the Xin Mo from the links below: Zero Delay / Xin Mo.

Features

• Chromed effect LED button
• Microswitch and LED included
• 4.8mm microswitch
• For 28mm-30mm diameter holes
• Length 35mm
• Metal / wood panels
• Voltage 12V / 5V
• Easy installation
