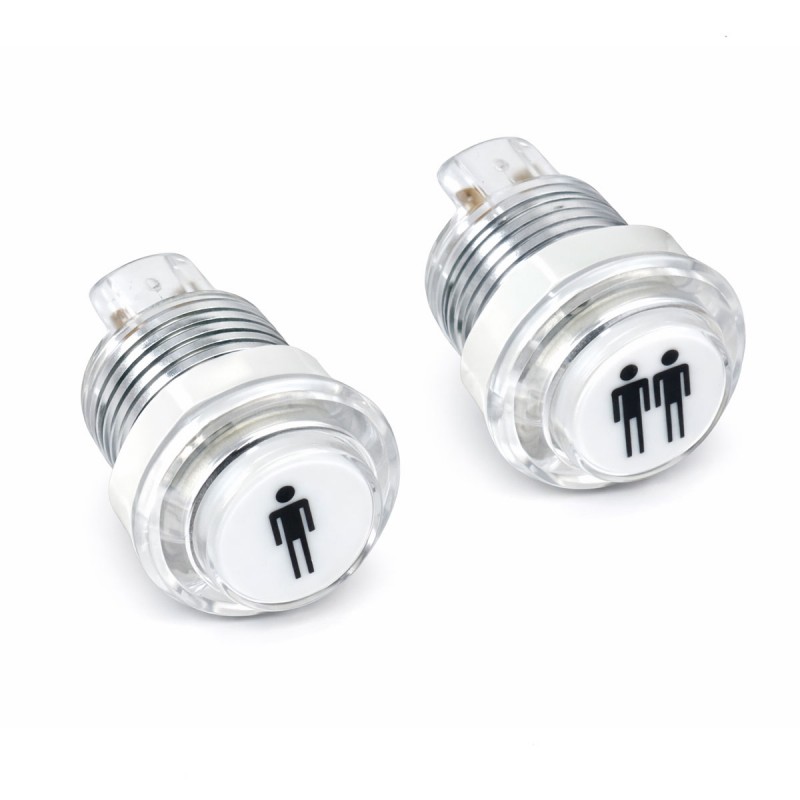

1 & 2 Player Iluminated White LED Translucent Microswitch Built-in Button

High quality Translucent white LED player buttons 1 and 2. These buttons are illuminated by LEDs and are perfect for decorating your Arcade Cabinet / Bartop providing some an extra touch of elegance that will complement the decorative arts you have chosen for your Arcade project. This button has a built-in microswitch with 4 fastons of 2.8mm width. 2 fastons for the action connections and 2 fastons for the LEDs.

With a 28mm diameter and an approximate length of 33mm, the push button can be installed on both metal and wooden panels quickly and easily thanks to the accompanying screw system. This arcade button can be installed in holes ranging from 28mm to 30mm in diameter.

The LED of this button is compatible with both 5V and 12v. In case the LED doesn´t work, it is very easy to replace it. At our store you can find LED bulbs sold separately which you can use as replacement.

In order to light up the push button, you will need a 5V or 12V power source. We recommend that you either get it from your Arcade Machine power supply or from one of the 5V pins on the Xin Mo encoder, or the specific Zero Delay interfaces to light up the LEDs. These Zero Delays are available for 1 or 2 players which are also available at our store.

Our 1 and 2 player LED buttons are ideal for the most creative and detail-oriented gamers in terms of decoration of their Arcade Cabinet /Bartop / Control Panel.

Mounting Information

To install the LED Arcade push button, you'll need 2.8mm wiring as that is the width of the button action terminals and 2.8mm LED wiring as that is the width of the LED fastons. If you purchase one our interfaces, be sure to select the one with 2.8mm wide terminals wire. You can also purchase extra 2.8mm cables for the Zero Delay LED or the Xin Mo from the links below: Zero Delay / Xin Mo.

Features

• Illuminated white player 1 and 2 buttons
• Translucent washer
• Microswitch and LEDs included in the button
• 2.8mm Microswitch fastons
• For 28-30mm diameter holes
• Length 33 mm
• Metal / wood panels
• 12V / 5V voltage
• Easy installation
