CS616 Multicoin Impulse Universal Electronic Coin Mech

The Arcade Coin Mech CS616 is a very versatile coin acceptor because it accepts up to 6 different currencies at the same time, and it is compatible with 99% of the coins and tokens in the market. It is possible to program it, without the need of a computer, the number of impulses per coin inserted.

Undoubtedly, and after testing many coin acceptors of this type, we can confirm that the Programmable Arcade Coin Mech CS-616 is one of the most adaptable and flexible of the market and one of the most used by businesses that work and sell Arcade Machines, Slot Machines and other types of Gaming Machines.

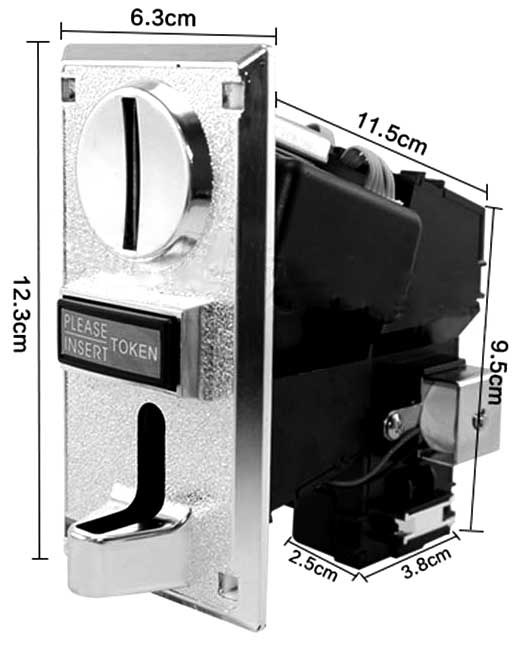

Aesthetically, the  CS616  Impulse Programmable Arcade Coin Mech has a shiny silver case, made of PVC and Metal. This gives the coin mechanism a feeling of robustness and high quality.

This Coin Mech accepts a wide range of coins and tokens of different diameter and width (D 15mm-29mm, A 1.8mm-3mm) and also thanks to the integrated CPU, we can make it work with almost any coin or token in the market. The Coin Mech can also be programmed to work with different currencies at the same time, adding up their total value. That means, if we want to get 1 credit for 2€, we can program it by inserting 2 coins of 1€ it also gives us 1 credit. the same can be done by programming  it to accept coins of 0.50€ and we have to insert 4 coins to get 1 credit and so on, up to 6 different coins.

Another very interesting feature is we can decide how many impulses (credits) we want the Coin Mech to offer the user once the coin has been inserted.This means, we can configure the Coin Mech to grant 2 credits per 1€, for example. Or that instead of 2 credits, it grants 4 credits.The programming possibilities of the CS-616 are many.

Contrary to some electronic coin mechanisms on the market, the filtering system used by the CS-616 is very good, being very accurate and with a very low percentage error. Due to the software and the CPU integrated in the coin mechanism PCB, it is not necessary a computer to program it. Everything can be configured on the CS-616 coin acceptor itself. To do this we can make use of the PDF MANUAL and the informative LED display that is integrated in the coin acceptor itself.

This great Programmable Arcade Coin Mech CS-616 is compatible with a multitude of systems and can be installed in: a Computer, in a Arcade Machine with its JAMMA wiring, in a Raspberry Pi using interfaces such as Zero Delay or Xin Mo. The CS616 is also compatible with the Pandoras Box, as well as any other gaming machines. For the correct operation of the coin acceptor we only have to supply it with 12V and 0.8A as minimum. The coin acceptor itself also has a protection system against electrical discharges and electromagnetic interferences.

All the wiring and screws necessary for the coin mech installation are included.

Below is a video showing how to connect the coin acceptor to an arcade encoder:

Features

• Accepts all coins and tokens
• Intelligent control of high-precision CPU software
• Self-programmable without the need for a PC
• Number of pulses per configurable currency
• Accepts up to 6 different coins simultaneously
• Protection against electric shock or electromagnetic interference
• Automatic Problem Diagnostics
• DC12V voltage
• 5mm-32mm coin diameter
• Coin width 1.2-3.8mm
• Temperature -15º +50º
• Front material: Metal and PV
