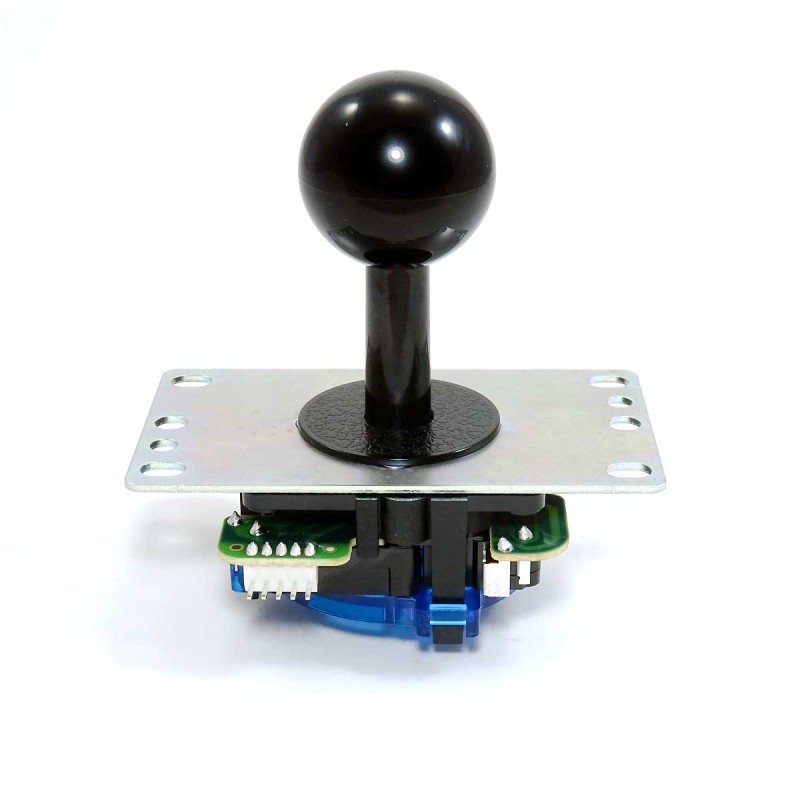

Sanwa Silent Arcade Joystick JLF-TPRG-8BYT-SK High Tension

Arcadexpress offers a new product from the prestigious brand Sanwa: The magnificent Sanwa JLF-TPRG-8BYT-SK Silent Joystick.

There are 2 versions of the superb Sanwa silent JLF-TPRG-8BYT-SK joystick: Version A which has a normal tension spring and version B, which has a high tension spring mounted. The model we sell at Arcade Express is the high tension one. The playability and feeling when using this model of the Joystick is simply exquisite.

The Sanwa JLF-TPRG-8BYT-SK includes a blue translucent 8-way restrictor with no ability to be set to 4-way as the restrictor is molded in 1 piece. This means the joystick can only be played as an 8 way model joystick.

The Sanwa JLF-TPRG-8BYT-SK is available in several colors and the customer can choose the color of the ball shaft at the time of ordering. In this listing we sell the joystick with the shaft knob in 2 different colors: black and white, but If the customer is looking for a different colour he can send us a message with the ball top color desired. This joystick also includes the black JLF-CD shaft and dust washer

Just as the Sanwa JLF-TP-8Y, the Sanwa Silent JLF-TPRG-8BYT-SK joystick features a 5-pin connector for simple wiring installation, compatible with a wide range of Arcade Sticks and Fight Sticks.

MICROSWITCH OMRON D2RV-G-SD3

The Sanwa JLF-TPRG-8BYT-SK joystick features D2RV-G-SD3 microswitches which have a slightly harder spring than the default JLF-TP-8Y. It means that the axis of the joystick lever returns to its neutral position more quickly than on the JLF-TP-8Y. Moreover, the Omron microswitches mounted on the Sanwa JLF-TPRG-8BYT-SK are virtually inaudible.

Note: There is a sticker written in Japanese, attached to the restrictor itself that warns the user not to remove the restrictor as this could damage the microswitches underneath.  If this sticker is removed, the warranty will be void, no exceptions.  There will be no refunds, exchanges, or returns in cases such as this.

Features

• High quality Sanwa brand product
• Omron Silent Microswitches
• High Tension Joystick
• Dedicated 8-way solid restrictor
• JLF-CD shaft and dust washer
• Interchangeable joystick ball top
• Suitable for wooden and metal panels
• Weight 280gr
