Williams / Bally LED Illuminated Pinball Buttons Kit 5V-12V

Arcade Express brings this Illuminated Pinball Button Kit. Whether for replacement or new assembly, these buttons provide a retro and professional aesthetic, as well as improving visibility during gameplay. Their installation is simple and they are compatible with most standard pinball configurations Williams/Bally. This button kit is compatible with both virtual pinballs and classic pinballs, although it is especially aimed at the former.

Thanks to these buttons, you can complete your Pinball project with illuminated buttons, giving it an elegant touch and a quality finish that will make your project stand out.

With a diameter of 28mm and an approximate length of 35mm, this button can be installed on both metal and wooden panels quickly and easily thanks to the accompanying screw system. This button can be installed in holes ranging from 24mm to 28mm in diameter. The finish of the buttons includes a beautiful black bezel that covers the entire button, including the crown, leaving only the actuator in a translucent color to allow the light from the LEDs to pass through.

The LEDs in these buttons are compatible with both 5V and 12V. In case the LED burns out, it is very easy to replace. In our store, you can find individual LED bulbs that will serve as replacements.

To illuminate the buttons, you will need to draw 5V or 12V from a power supply. We recommend either drawing it from the power supply of the Arcade Machine or from one of the 5V pins found on the Xin Mo interface, or the Zero Delay interfaces specifically for illuminating LEDs. These Zero Delay are available for 1 or 2 players and are also sold in our store.

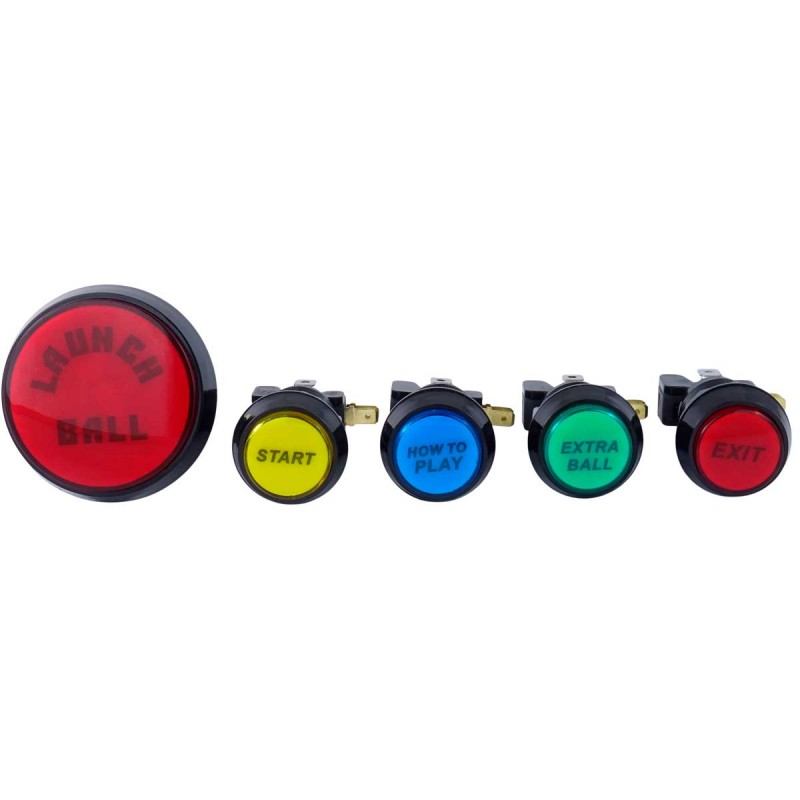

The Pinball button kit consists of:

1. Red "Launch Ball" button, 44mm diameter, LED illuminated
2. Yellow "Start" button, 28mm diameter, LED illuminated
3. Blue "How to play" button, 28mm diameter, LED illuminated
4. Green "Extra Ball" button, 28mm diameter, LED illuminated
5. Red "Exit" button, 28mm diameter, LED illuminated

Assembly Information

To install this LED illuminated Arcade button KIT, you need 4.8mm wiring as that is the width of the actuator terminals, and LED wiring of 6.3mm as that is the width of the LED fastons. If you purchase one of the interfaces we sell at Arcade Express, make sure to select the variant with 6.3mm wide terminals. You can also purchase extra 6.3mm wiring for the Zero Delay LED or for the Xin Mo at the following links: Zero Delay / Xin Mo.

Features

• LED illuminated Pinball button kit
• Compatible with William / Bally models
• Microswitch and LEDs included
• For hole diameters of 24mm-28mm
• Blee brand microswitches, 4.8mm wide
• Metal / wood panels
• Voltage of 12V / 5V
• Easy installation
